INLS 1U

Antrix > INLS 1U

Payload Separation Mechanisms

  • Non-Pyro dispenser for 1Kg class Nano satellites.

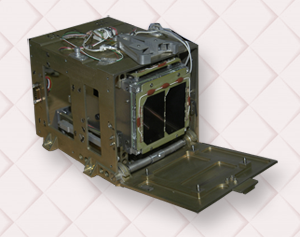

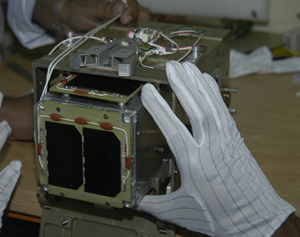

  • Satellite is kept inside a rectangular structure and locked by a swinging door.
  • Redundant heating element for wire fusing mechanism to initiate the separation and helical spring to jettison the satellite.
  • Micro Switches to monitor the door opening and reed switch to confirm satellite ejection.

  • No mass attached with satellite after separation.
  • Satellite size: 100 mm x 100 mm x 113.5 mm
  • Relative velocity: 1 m/s
  • Satellite giuded inside the system to reduce the tip off rates.
  • Operating temperature & Vacuum: 0 c to +600 C, < 10 -5 torr
  • Power Supply
    Current: 4±02 Amp
    Voltage: 2.4 V
    Separation time: 5 sec
Flight Heritage: Successfully deployed STUDSAT in PSLV C15 and SWAYM in PSLV C34
